Total Solutions Industries LLC (TSI) is a high-quality sacrificial anode manufacturing plant located in the Emirate of Umm Al Quwain in the United Arab Emirates (UAE). Equipped with modern facilities, efficient manufacture, and analytical capabilities, the plant has the capacity to produce 3600 tons of Aluminium and Zinc anode annually. The manufacturing unit is managed by well knowledgeable Technocrats who have 15+ years of experience in all aspects of anode manufacturing including Sales, Manufacturing, and Quality/Inspection.
The plant has the capability to produce Aluminium and Zinc sacrificial anodes in different sizes and different weight ranges to cater to marine, offshore oilfields, and offshore wind farms. Our product range includes ship hull anodes, flush-mounted, bolt-on types, long slender stand-off, cylindrical, bracelet, etc.
We maintain a stock of standard commodity anodes. Being part of Total Solutions Engineering LLC, a steel fabrication company gives an advantage to the company for all fabrication/welding requirements of the steel core and molds. Anodes are manufactured at the best lead time and delivered to you as per the quality requirements on time every time.
Aluminium Alloy Anodes
Aluminium, Al-Zn-In Alloy Conforming to DNV RP B401
Material Specification
Alloy Composition by weight (percentage)
Cu : 0.003max
Zn : 3.0 –5.0
Fe : 0.09max
In : 0.01 –0.05
Si : 0.10max
Al : Reminder
Anode Performance Data (Sea Water at 25 ohm cms)
Cu : 0.003max
Zn : 3.0 –5.0
Fe : 0.09max
In : 0.01 –0.05
Si : 0.10max
Al : Reminder
Aluminium Jacket Anode
Jacket Anode

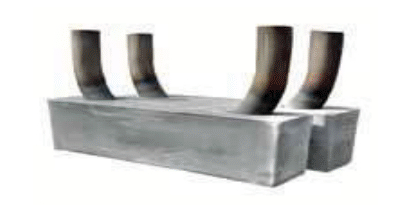

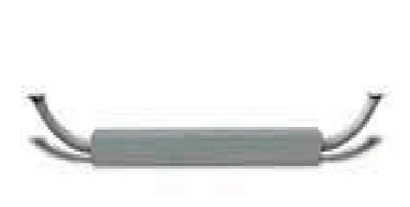

Jacket Anode Cow Horn Type
Jacket Anode

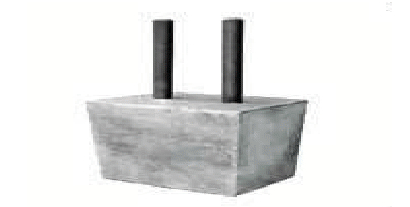

Goal Post Type Jacket Anode
Goal Post Type Jacket Anode

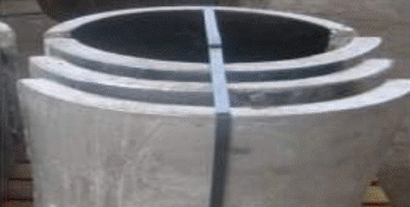

Aluminium Bracelet / Pipe Line Anode

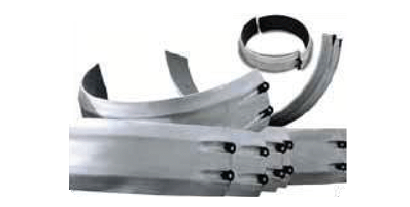

Half Shall Bracelet Anode (PipelineAnode)
Half Shall Bracelet Anode (Pipeline Anode)

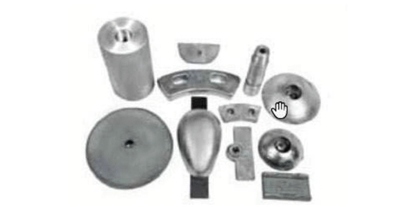

Aluminium Marine Anode

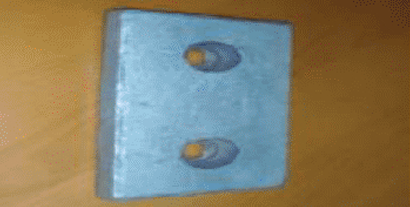

Marine Bolted Type

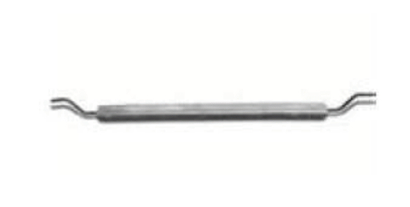

Marine Tank Anode

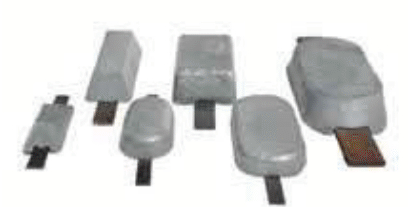

Marine Weld Type
Application

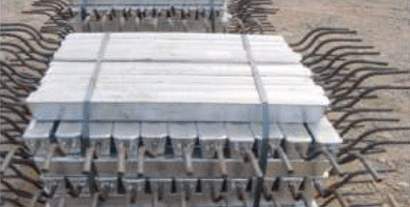

Offshore: JacketAnode
-
Mainly Aluminum alloy anodes are used in the cathodic protection offshore platforms such as process platforms, wellhead platforms, flare tripod, etc.
-
TSI can supply jacket anodes in the range of 100-600 KG in cow horn or goal post type design with/without doubler plates
-
These anodes are connected to the steel member by a tubular pipe
Offshore: Pipeline / BraceletAnode
- Used for subsea pipeline cathodic protection. Material is either Aluminum or Zinc alloy type
- TSI supplies offshore pipeline anodes for 2”-52” pipeline sizes with inserts as per customer desired specifications
- Usually produced in 2 halves and connected to the pipes by means of welding or bolting
Marine Anode
-
These anodes are used to protect Ship/Vessel structures such as ship hulls, ballast tanks, rig components, etc.
-
These anodes are either Aluminum alloy or Zinc alloy type ranging from 1-100KG.
Zinc Alloy Anodes
High-Temperature Alloy
Zn - Al-Mg Alloy
Material Specifications
Alloy Composition by weight (percentage)
Al : 0.10 - 0.28
Mg : 0.03 – 0.18
Cd : 0.001 max
Fe : 0.004 max
Pb : 0.001 max
Others : 0.001 max
Zn : Remainder
Specific Gravity : 7120 kg/m3
Zinc Anode Marine Application
Jacket Anode
Jacket Anode Cow Horn Type
Jacket Anode
Zinc Anode Special Application
Half Shall Bracelet Anode (PipelineAnode)
Zinc Anode Process Vessel Application
Marine Bolted Type
Application
Marine
-
These anodes are used to protectShip/Vessel structures such as ship hulls, ballast tanks, rig components, etc.
-
Weight034of these anodes range from 1-100Kg.
Onshore
-
Zinc prepacked anodes are recommended where the low soil resistivity is less than 1500 Ohm -cms.
-
TSI's prepacked Zinc anode is consist of 75% - Gypsum: 20% Bentonite & 5% Sodium Sulphate.
-
Anode Size & capability shall be of customized size.
Alloy Composition by weight (percentage)
20°C | 40°C | 60°C | 80°C | |
Capacity (Amp Hrs./Kg) | 780 | 780 | 690 | 690 |
Consumption rate (kg/A year) | 11.2 | 11.2 | 12.7 | 12.7 |
Closed Circuit Potential (Volts) (w.r.t Ag/AgCl ref.elec | -1.03 | -1.03 | -0.97 | -0.97 |
Anode Performance Data in Sea Bottom Sediments (Sea Mud)
30°C | 50°C | 85°C | |
Capacity (Amp Hrs./Kg) | 715 | 710 | 430 |
Consumption rate (kg/A year) | 12.3 | 12.3 | 20.7 |
Closed Circuit Potential (Volts) (w.r.t Ag/AgCl ref.elec | -0.98 | -0.95 | -0.94 |
Anode Performance Data (Sea Water at 25 ohm cms)
Capacity : 2500 A,pHrs/kg
Utilization : 85%
Circuit Potential : -1.05 volt (w.r.t.Ag/AgCl ref.elec.)
Pure Zinc
Zn - Al - Cd Alloy Confirming to ASTM B - 418 Type II
Material Specifications
Alloy Composition by weight (percentage)
Al : 0.005 % max
Cd : 0.003 % max
Cu : 0.002 % max
Fe : 0.0014 % max
Pb : 0.003 % max
Zn : Remainder
Alloy Composition by weight (percentage)
Capacity : 780 A.p Hrs/Kg
Utilization : 95%
Circuit Potential : -1.03 volt(w.r.t. Ag/AgCl ref. elec)
Zinc Alloy Anode
Zn – Al –Cd Alloy Conforming to US Mil-Spec 18001 K
Material Specifications
Alloy Composition by weight (percentage)
Cu : 0.005 max
Al : 0.10-0.50
Fe : 0.005 max
Cd : 0.25-0.07
Pb : 0.006 max
Others : 0.10
Zn : Remainder
Alloy Composition by weight (percentage)
Capacity : 780 A,pHrs/kg
Utilization : 95%
Circuit Potential : -1.05 volt (w.r.t.Ag/AgCl ref.elec.)
Zinc Anode Onshore Underground Application
Marine Bolted Type
Other Products
Magnesium Alloy Anodes
Material Specifications
Alloy Composition by weight (percentage)
Al : 0.01% max
Ni : 0.001% max
Mn : 0.5-1.3% max
Cu : 0.005% max
Si : 0.05% max
Fe : 0.001% max
Others : 0.001% max
Mg : Remainder
Mangnesium Anode

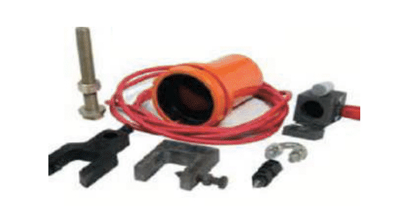

CP Installation Accessories
Bem Analysis

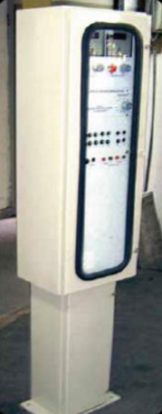

CP Monitoring System
CP Monitoring System Accessory
Application
Marine
-
These anodes are used to protectShip/Vessel structures such as ship hulls, ballast tanks, rig components, etc.
-
Weight034of these anodes range from 1-100Kg.
Onshore
-
Zinc prepacked anodes are recommended where the low soil resistivity is less than 1500 Ohm -cms.
-
TSI's prepacked Zinc anode is consist of 75% - Gypsum: 20% Bentonite & 5% Sodium Sulphate.
-
Anode Size & capability shall be of customized size.
100% Iron Anodes
Material Specifications
Alloy Composition by weight (percentage)
C : 0.06% max
Si : 0.2-0.6% max
Mn : 0.90% max
P : 0.03% max
S : 0.02 % max
Fe : Remainder
Iron Nickel Anodes
Material Specifications
Alloy Composition by weight (percentage)
C : 0.13 % max
Si : 0.40 % max
Mn : 0.90 % max
P : 0.035 % max
S : 0.035 % max
Ni : 8.5 -9.5 % max
Fe : Remainder
Iron Anode
Magnesium
Pre-packaged Magnesium anodes are the most widely used for soil applications to achieve practical current output in resistive soil applications. The magnesium is available in two grades, high purity, and high potential. The latter is primarily for use in higher resistivity soils. Anodes are supplied packaged in a cotton bag containing a backfill to gypsum, bentonite, and sodium sulfate which improve performance by retaining moisture thus reducing the resistivity of the electrolyte local to the anode.
Cathodic protection monitoring system:
TSI Supplies an offshore remote CP monitoring system consisting of Zinc reference Electrode, Monitoring Anode, the Monitoring panel.

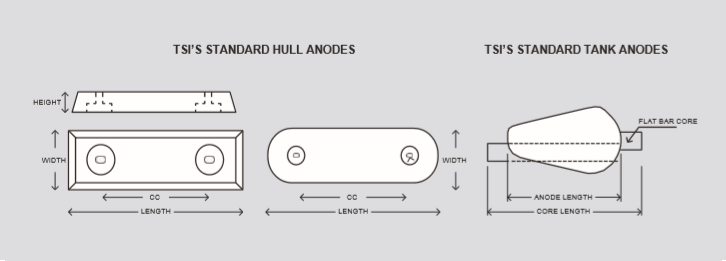

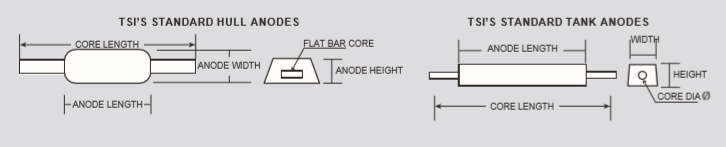

Standard Marine Anodes
Aluminium Anodes

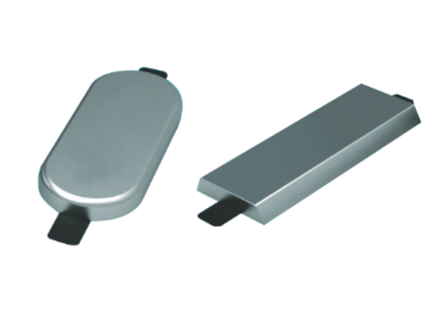

Aluminum Hull Welded Anodes
Anode Code | Anode Type | Length in mm | Width in mm | Height in mm | Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
TAHW 016 | Al Welded Anode | 200 | 95 | 33 | 300 | 25*6 | Flat Bar | 1.20 | 1.60 |
TAHW 019 | Al Welded Anode | 200 | 115 | 30 | 320 | 25*6 | Flat Bar | 1.50 | 1.90 |
TAHW 025 | Al Welded Anode | 300 | 90 | 40 | 400 | 25*6 | Flat Bar | 2.10 | 2.50 |
TAHW 043 | Al Welded Anode | 320 | 160 | 35 | 420 | 30*6 | Flat Bar | 3.70 | 4.30 |
TAHW 056 | Al Welded Anode | 390 | 155 | 36 | 490 | 40*8 | Flat Bar | 4.60 | 5.60 |
TAHW 070 | Al Welded Anode | 520 | 120 | 40 | 620 | 40*6 | Flat Bar | 6.00 | 7.00 |
TAHW 084 | Al Welded Anode | 580 | 140 | 40 | 680 | 40*8 | Flat Bar | 7.00 | 8.40 |
TAHW 101 | Al Welded Anode | 550 | 130 | 50 | 650 | 40*8 | Flat Bar | 8.40 | 10.10 |
TAHW 112 | Al Welded Anode | 600 | 150 | 50 | 700 | 50*8 | Flat Bar | 9.00 | 11.20 |
TAHW 123 | Al Welded Anode | 550 | 135 | 65 | 650 | 50*8 | Flat Bar | 10.30 | 12.30 |
TAHW 152 | Al Welded Anode | 590 | 152 | 70 | 690 | 50*8 | Flat Bar | 13.30 | 15.20 |
TAHW 200 | Al Welded Anode | 920 | 160 | 60 | 1020 | 40*8 | Flat Bar | 17.40 | 20.00 |
Anode Code | Anode Type | Length in mm | Width in mm | Hight in mm |
TAHW 016 | Al Welded Anode | 200 | 95 | 33 |
TAHW 019 | Al Welded Anode | 200 | 115 | 30 |
TAHW 025 | Al Welded Anode | 300 | 90 | 40 |
TAHW 043 | Al Welded Anode | 320 | 160 | 35 |
TAHW 056 | Al Welded Anode | 390 | 155 | 36 |
TAHW 070 | Al Welded Anode | 520 | 120 | 40 |
TAHW 084 | Al Welded Anode | 580 | 140 | 40 |
TAHW 101 | Al Welded Anode | 550 | 130 | 50 |
TAHW 112 | Al Welded Anode | 600 | 150 | 50 |
TAHW 123 | Al Welded Anode | 550 | 135 | 65 |
TAHW 152 | Al Welded Anode | 590 | 152 | 70 |
TAHW 200 | Al Welded Anode | 920 | 160 | 60 |
Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
300 | 25*6 | Flat Bar | 1.20 | 1.60 |
320 | 25*6 | Flat Bar | 1.50 | 1.90 |
400 | 25*6 | Flat Bar | 2.10 | 2.50 |
420 | 30*6 | Flat Bar | 3.70 | 4.30 |
490 | 40*8 | Flat Bar | 4.60 | 5.60 |
620 | 40*6 | Flat Bar | 6.00 | 7.00 |
680 | 40*8 | Flat Bar | 7.00 | 8.40 |
650 | 40*8 | Flat Bar | 8.40 | 10.10 |
700 | 50*8 | Flat Bar | 9.00 | 11.20 |
650 | 50*8 | Flat Bar | 10.30 | 12.30 |
690 | 50*8 | Flat Bar | 13.30 | 15.20 |
1020 | 50*8 | Flat Bar | 17.40 | 20.00 |
Aluminum Tank Anodes
Anode Code | Anode Type | Length in mm | Width in mm | Height in mm | Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
TAT 041 | Al Tank Anode | 298 | 57 | 75 | 758 | 14 mm Φ | Round Bar | 3.40 | 4.10 |
TAT 051 | Al Tank Anode | 815 | 50 | 50 | 1275 | 14 mm Φ | Round Bar | 4.10 | 5.10 |
TAT 065 | Al Tank Anode | 305 | 77 | 95 | 765 | 14 mm Φ | Round Bar | 5.90 | 6.50 |
TAT 085 | Al Tank Anode | 1220 | 57 | 63 | 1680 | 14 mm Φ | Round Bar | 7.50 | 8.50 |
TAT 096 | Al Tank Anode | 750 | 57 | 75 | 1210 | 14 mm Φ | Round Bar | 8.50 | 9.60 |
TAT 120 | Al Tank Anode | 1220 | 67 | 76 | 1680 | 14 mm Φ | Round Bar | 10.50 | 12.00 |
TAT 125 | Al Tank Anode | 990 | 57 | 75 | 1450 | 14 mm Φ | Round Bar | 11.20 | 12.50 |
TAT 145 | Al Tank Anode | 1120 | 57 | 75 | 1580 | 14 mm Φ | Round Bar | 12.80 | 14.50 |
TAT 160 | Al Tank Anode | 1245 | 57 | 75 | 1705 | 14 mm Φ | Round Bar | 14.50 | 16.00 |
TAT 180 | Al Tank Anode | 1220 | 81 | 82 | 1680 | 14 mm Φ | Round Bar | 16.50 | 18.00 |
TAT 190 | Al Tank Anode | 1550 | 57 | 75 | 1965 | 14 mm Φ | Round Bar | 17.30 | 19.00 |
Anode Code | Anode Type | Length in mm | Width in mm | Hight in mm |
TAT 041 | Al Tank Anode | 298 | 57 | 75 |
TAT 051 | Al Tank Anode | 815 | 50 | 50 |
TAT 065 | Al Tank Anode | 305 | 77 | 95 |
TAT 085 | Al Tank Anode | 1220 | 57 | 63 |
TAT 096 | Al Tank Anode | 750 | 57 | 75 |
TAT 120 | Al Tank Anode | 1220 | 67 | 76 |
TAT 125 | Al Tank Anode | 990 | 57 | 75 |
TAT 145 | Al Tank Anode | 1120 | 57 | 75 |
TAT 160 | Al Tank Anode | 1245 | 57 | 75 |
TAT 180 | Al Tank Anode | 1220 | 82 | 82 |
TAT 190 | Al Tank Anode | 1550 | 57 | 75 |
Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
758 | 25*6 | Flat Bar | 1.20 | 1.60 |
1275 | 25*6 | Flat Bar | 1.50 | 1.90 |
765 | 25*6 | Flat Bar | 2.10 | 2.50 |
1680 | 30*6 | Flat Bar | 3.70 | 4.30 |
1210 | 40*8 | Flat Bar | 4.60 | 5.60 |
1680 | 40*6 | Flat Bar | 6.00 | 7.00 |
1450 | 40*8 | Flat Bar | 7.00 | 8.40 |
1580 | 40*8 | Flat Bar | 8.40 | 10.10 |
1705 | 50*8 | Flat Bar | 9.00 | 11.20 |
1680 | 50*8 | Flat Bar | 10.30 | 12.30 |
1965 | 50*8 | Flat Bar | 13.30 | 15.20 |

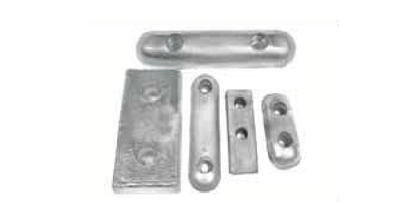

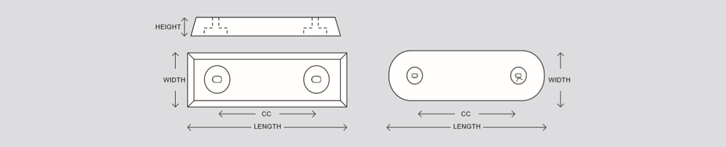

Aluminum Bolted Anodes
Anode Code | Anode Type | Length in mm | Width in mm | Height in mm | Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
TAHB 018 | Al Bolted Anode | 200 | 100 | 30 | 110 | - | - | 1.40 | 1.80 |
TAHB 021 | Al Bolted Anode | 200 | 100 | 40 | 110 | - | - | 1.70 | 2.10 |
TAHB 032 | Al Bolted Anode | 300 | 150 | 25 | 160 | - | - | 2.80 | 3.20 |
TAHB 037 | Al Bolted Anode | 300 | 150 | 30 | 160 | - | - | 3.30 | 3.70 |
TAHB 051 | Al Bolted Anode | 300 | 150 | 40 | 160 | - | - | 4.70 | 5.10 |
TAHB 061 | Al Bolted Anode | 300 | 150 | 50 | 160 | - | - | 5.7 | 6.1 |
TAHB 065 | Al Bolted Anode | 300 | 150 | 60 | 160 | - | - | 6.1 | 6.5 |
TAHB 060 | Al Bolted Anode | 300 | 200 | 40 | 160 | - | - | 5.6 | 6 |
TAHB 080 | Al Bolted Anode | 300 | 200 | 50 | 160 | - | - | 7.6 | 8 |
TAHB 095 | Al Bolted Anode | 300 | 200 | 60 | 160 | - | - | 9.1 | 9.5 |
Anode Code | Anode Type | Length in mm | Width in mm | Hight in mm |
TAHB 018 | Al Bolted Anode | 200 | 100 | 30 |
TAHB 021 | Al Bolted Anode | 200 | 100 | 40 |
TAHB 032 | Al Bolted Anode | 300 | 100 | 25 |
TAHB 037 | Al Bolted Anode | 300 | 150 | 30 |
TAHB 051 | Al Bolted Anode | 300 | 150 | 40 |
TAHB 061 | Al Bolted Anode | 300 | 150 | 50 |
TAHB 065 | Al Bolted Anode | 300 | 150 | 60 |
TAHB 060 | Al Bolted Anode | 300 | 160 | 40 |
TAHB 080 | Al Bolted Anode | 300 | 160 | 50 |
TAHB 095 | Al Bolted Anode | 300 | 160 | 60 |
Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
110 | - | - | 1.40 | 1.80 |
110 | - | - | 1.70 | 2.10 |
160 | - | - | 2.80 | 3.20 |
160 | - | - | 3.30 | 3.70 |
160 | - | - | 4.70 | 5.10 |
160 | - | - | 5.7 | 6.1 |
160 | - | - | 6.1 | 6.5 |
160 | - | - | 5.6 | 6 |
160 | - | - | 7.6 | 8 |
160 | - | - | 9.1 | 9.5 |
Aluminum Hull Bolted Anodes - Round Edge
Anode Code | Anode Type | Length in mm | Width in mm | Height in mm | Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
TAHB 020 | Al Bolted Anode | 300 | 80 | 40 | 160 | - | - | 1.6 | 2 |
TAHB 034 | Al Bolted Anode | 450 | 100 | 40 | 230 | - | - | 3 | 3.4 |
TAHB 052 | Al Bolted Anode | 450 | 100 | 50 | 230 | - | - | 4.8 | 5.2 |
TAHB 100 | Al Bolted Anode | 460 | 200 | 65 | 265 | - | - | 9.6 | 10 |
TAHB 155 | Al Bolted Anode | 540 | 200 | 65 | 300/340 | - | - | 15.1 | 15.5 |
Anode Code | Anode Type | Length in mm | Width in mm | Hight in mm |
TAHB 020 | Al Bolted Anode | 200 | 100 | 30 |
TAHB 034 | Al Bolted Anode | 200 | 100 | 40 |
TAHB 052 | Al Bolted Anode | 300 | 100 | 25 |
TAHB 100 | Al Bolted Anode | 300 | 150 | 30 |
TAHB 155 | Al Bolted Anode | 300 | 150 | 40 |
Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
160 | - | - | 1.6 | 2 |
230 | - | - | 3 | 3.4 |
230 | - | - | 4.8 | 5.2 |
265 | - | - | 9.6 | 10 |
300/340 | - | - | 15.1 | 15.5 |
Zinc Anodes
Zinc Kuwait Anodes
Anode Code | Anode Type | Length in mm | Width in mm | Height in mm | Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
TZ 30 KT | Zn Kuwait Anode | 155 | 82 | 40 | 255 | 25*6 | Flat Bar | 2.7 | 3.0 |
TZ 50 KT | Zn Kuwait Anode | 260 | 110 | 30 | 400 | 25*6 | Flat Bar | 4.6 | 5.0 |
TZ 100 KT | Zn Kuwait Anode | 400 | 150 | 27 | 500 | 30*6 | Flat Bar | 9.4 | 10.1 |
TZ 120 KT | Zn Kuwait Anode | 345 | 150 | 35 | 445 | 30*6 | Flat Bar | 11.0 | 12.0 |
TZ 160 KT | Zn Kuwait Anode | 460 | 120 | 50 | 560 | 30*6 | Flat Bar | 15.0 | 16.0 |
Anode Code | Anode Type | Length in mm | Width in mm | Hight in mm |
TZ 30 KT | Zn Kuwait Anode | 155 | 40 | 255 |
TZ 50 KT | Zn Kuwait Anode | 260 | 30 | 400 |
TZ 100 KT | Zn Kuwait Anode | 400 | 27 | 500 |
TZ 120 KT | Zn Kuwait Anode | 345 | 35 | 445 |
TZ 160 KT | Zn Kuwait Anode | 460 | 50 | 560 |
Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
255 | 25*6 | Flat Bar | 2.7 | 3.0 |
400 | 25*6 | Flat Bar | 4.6 | 5.0 |
500 | 30*6 | Flat Bar | 9.4 | 10.1 |
445 | 30*6 | Flat Bar | 11.0 | 12.0 |
560 | 30*6 | Flat Bar | 15.0 | 16.0 |
Zinc Hull Welded Anodes
Anode Code | Anode Type | Length in mm | Width in mm | Height in mm | Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
TZHW 037 | Zn Welded Anode | 200 | 95 | 33 | 300 | 25*6 | Flat Bar | 3.2 | 3.7 |
TZHW 043 | Zn Welded Anode | 220 | 115 | 30 | 320 | 25*6 | Flat Bar | 3.9 | 4.3 |
TZHW 055 | Zn Welded Anode | 300 | 90 | 40 | 400 | 25*6 | Flat Bar | 5.1 | 5.5 |
TZHW 070 | Zn Welded Anode | 270 | 150 | 30 | 370 | 30*6 | Flat Bar | 6.7 | 7.0 |
TZHW 080 | Zn Welded Anode | 300 | 150 | 30 | 400 | 25*6 | Flat Bar | 7.6 | 8.0 |
TZHW 084 | Zn Welded Anode | 300 | 150 | 30 | 430 | 30*6 | Flat Bar | 7.9 | 8.4 |
TZHW 106 | Zn Welded Anode | 320 | 160 | 35 | 420 | 30*6 | Flat Bar | 10.0 | 10.6 |
TZHW 133 | Zn Welded Anode | 390 | 155 | 36 | 490 | 40*8 | Flat Bar | 12.3 | 13.3 |
TZHW 160 | Zn Welded Anode | 520 | 120 | 40 | 620 | 40*6 | Flat Bar | 15.0 | 16.0 |
TZHW 198 | Zn Welded Anode | 580 | 140 | 40 | 680 | 40*8 | Flat Bar | 18.4 | 19.8 |
TZHW 232 | Zn Welded Anode | 550 | 130 | 50 | 650 | 40*8 | Flat Bar | 21.5 | 23.2 |
TZHW 253 | Zn Welded Anode | 600 | 150 | 50 | 700 | 50*8 | Flat Bar | 23.1 | 25.3 |
TZHW 290 | Zn Welded Anode | 550 | 135 | 65 | 650 | 50*8 | Flat Bar | 27.0 | 29.0 |
TZHW 366 | Zn Welded Anode | 590 | 152 | 70 | 690 | 50*8 | Flat Bar | 34.7 | 36.6 |
TZHW 472 | Zn Welded Anode | 920 | 160 | 60 | 1020 | 40*8 | Flat Bar | 44.6 | 47.2 |
Anode Code | Anode Type | Length in mm | Width in mm | Hight in mm |
TZHW 037 | Zn Welded Anode | 200 | 33 | 300 |
TZHW 043 | Zn Welded Anode | 220 | 30 | 320 |
TZHW 055 | Zn Welded Anode | 300 | 40 | 400 |
TZHW 070 | Zn Welded Anode | 270 | 30 | 370 |
TZHW 080 | Zn Welded Anode | 300 | 30 | 400 |
TZHW 084 | Zn Welded Anode | 300 | 30 | 430 |
TZHW 106 | Zn Welded Anode | 320 | 35 | 420 |
TZHW 133 | Zn Welded Anode | 390 | 36 | 490 |
TZHW 160 | Zn Welded Anode | 520 | 40 | 620 |
TZHW 198 | Zn Welded Anode | 580 | 40 | 680 |
TZHW 232 | Zn Welded Anode | 550 | 50 | 650 |
TZHW 253 | Zn Welded Anode | 600 | 50 | 700 |
TZHW 290 | Zn Welded Anode | 550 | 65 | 650 |
TZHW 366 | Zn Welded Anode | 152 | 70 | 690 |
TZHW 472 | Zn Welded Anode | 160 | 60 | 1020 |
Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
300 | 25*6 | Flat Bar | 3.2 | 3.7 |
320 | 25*6 | Flat Bar | 3.9 | 4.3 |
400 | 25*6 | Flat Bar | 5.1 | 5.5 |
370 | 30*6 | Flat Bar | 6.7 | 7.0 |
400 | 25*6 | Flat Bar | 7.6 | 8.0 |
430 | 30*6 | Flat Bar | 7.9 | 8.4 |
420 | 30*6 | Flat Bar | 10.00 | 10.6 |
490 | 40*8 | Flat Bar | 12.3 | 13.3 |
620 | 40*6 | Flat Bar | 15.0 | 16.0 |
680 | 40*8 | Flat Bar | 18.4 | 19.8 |
650 | 40*8 | Flat Bar | 21.5 | 23.2 |
700 | 50*8 | Flat Bar | 23.1 | 25.3 |
650 | 50*8 | Flat Bar | 27.0 | 29.0 |
690 | 50*8 | Flat Bar | 34.7 | 36.6 |
1020 | 40*8 | Flat Bar | 44.6 | 47.2 |
Zinc Tank Anodes
Anode Code | Anode Type | Length in mm | Width in mm | Height in mm | Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
TZT 094 | Zn Tank Anode | 298 | 57 | 75 | 758 | 14 mm Ø | Round Bar | 8.7 | 9.4 |
TZT 120 | Zn Tank Anode | 815 | 50 | 50 | 1275 | 14 mm Ø | Round Bar | 11 | 12 |
TZT 161 | Zn Tank Anode | 305 | 77 | 95 | 765 | 14 mm Ø | Round Bar | 15.5 | 16.1 |
TZT 225 | Zn Tank Anode | 1220 | 57 | 63 | 1680 | 14 mm Ø | Round Bar | 21.5 | 22.5 |
TZT 234 | Zn Tank Anode | 750 | 57 | 75 | 1210 | 14 mm Ø | Round Bar | 22.3 | 23.4 |
TZT 315 | Zn Tank Anode | 1220 | 67 | 76 | 1680 | 14 mm Ø | Round Bar | 30.0 | 31.5 |
TZT 320 | Zn Tank Anode | 990 | 57 | 75 | 1450 | 14 mm Ø | Round Bar | 30.7 | 32.0 |
TZT 350 | Zn Tank Anode | 1120 | 57 | 75 | 1580 | 14 mm Ø | Round Bar | 33.2 | 35.0 |
TZT 396 | Zn Tank Anode | 1245 | 57 | 75 | 1705 | 14 mm Ø | Round Bar | 38.1 | 39.6 |
TZT 415 | Zn Tank Anode | 1220 | 81 | 82 | 1680 | 14 mm Ø | Round Bar | 40.0 | 41.5 |
TZT 461 | Zn Tank Anode | 1550 | 57 | 75 | 1965 | 14 mm Ø | Round Bar | 44.4 | 46.1 |
Anode Code | Anode Type | Length in mm | Width in mm | Hight in mm |
TZT 094 | Zn Tank Anode | 298 | 57 | 758 |
TZT 120 | Zn Tank Anode | 815 | 50 | 1275 |
TZT 161 | Zn Tank Anode | 305 | 95 | 765 |
TZT 225 | Zn Tank Anode | 1220 | 63 | 1680 |
TZT 234 | Zn Tank Anode | 750 | 75 | 1210 |
TZT 315 | Zn Tank Anode | 1220 | 76 | 1680 |
TZT 320 | Zn Tank Anode | 990 | 75 | 1450 |
TZT 350 | Zn Tank Anode | 1120 | 75 | 1580 |
TZT 396 | Zn Tank Anode | 1245 | 75 | 1705 |
TZT 415 | Zn Tank Anode | 1220 | 82 | 1680 |
TZT 461 | Zn Tank Anode | 1550 | 75 | 1965 |
Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
758 | 14 mm Ø | Round Bar | 8.7 | 9.4 |
1275 | 14 mm Ø | Round Bar | 11 | 12 |
765 | 14 mm Ø | Round Bar | 15.5 | 16.1 |
1680 | 14 mm Ø | Round Bar | 21.5 | 22.5 |
1210 | 14 mm Ø | Round Bar | 22.3 | 23.4 |
1680 | 14 mm Ø | Round Bar | 30.0 | 31.5 |
1450 | 14 mm Ø | Round Bar | 30.7 | 32.0 |
1580 | 14 mm Ø | Round Bar | 33.2 | 35.0 |
1705 | 14 mm Ø | Round Bar | 38.1 | 39.6 |
1680 | 14 mm Ø | Round Bar | 40.0 | 41.5 |
1965 | 14 mm Ø | Round Bar | 44.4 | 46.1 |
Zinc Hull Bolted Anodes - Round Edge
Anode Code | Anode Type | Length in mm | Width in mm | Height in mm | Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
TZHB 045 | Zn Bolted Anode | 300 | 80 | 40 | 160 | - | - | 4.1 | 4.5 |
TZHB 080 | Zn Bolted Anode | 450 | 100 | 40 | 230 | - | - | 7.6 | 8 |
TZHB 120 | Zn Bolted Anode | 450 | 100 | 50 | 230 | - | - | 11.6 | 12 |
TZHB 210 | Zn Bolted Anode | 460 | 200 | 65 | 265 | - | - | 20.6 | 21 |
TZHB 400 | Zn Bolted Anode | 540 | 200 | 65 | 300/340 | - | - | 39.6 | 40 |
Anode Code | Anode Type | Length in mm | Width in mm | Hight in mm |
TZHB 045 | Zn Bolted Anode | 300 | 80 | 40 |
TZHB 080 | Zn Bolted Anode | 450 | 100 | 40 |
TZHB 120 | Zn Bolted Anode | 450 | 100 | 50 |
TZHB 210 | Zn Bolted Anode | 460 | 200 | 65 |
TZHB 400 | Zn Bolted Anode | 540 | 200 | 65 |
Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
160 | - | - | 4.1 | 4.5 |
230 | - | - | 7.6 | 8 |
230 | - | - | 11.6 | 12 |
265 | - | - | 20.6 | 21 |
300/345 | - | - | 39.6 | 40 |
Zinc Hull Bolted Anodes
Anode Code | Anode Type | Length in mm | Width in mm | Height in mm | Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
TZHB 038 | Zn Bolted Anode | 200 | 100 | 30 | 110 | - | - | 3.4 | 3.8 |
TZHB 044 | Zn Bolted Anode | 200 | 100 | 40 | 110 | - | - | 4.0 | 4.4 |
TZHB 075 | Zn Bolted Anode | 300 | 150 | 25 | 160 | - | - | 7.1 | 7.5 |
TZHB 086 | Zn Bolted Anode | 300 | 150 | 30 | 160 | - | - | 8.2 | 8.6 |
TZHB 110 | Zn Bolted Anode | 300 | 150 | 40 | 160 | - | - | 10.6 | 11.0 |
TZHB 150 | Zn Bolted Anode | 300 | 150 | 50 | 160 | - | - | 14.6 | 15.0 |
TZHB 180 | Zn Bolted Anode | 300 | 150 | 60 | 160 | - | - | 17.6 | 18 |
TZHB 160 | Zn Bolted Anode | 300 | 200 | 40 | 160 | - | - | 15.6 | 16 |
TZHB 200 | Zn Bolted Anode | 300 | 200 | 50 | 160 | - | - | 19.6 | 20 |
TZHB 240 | Zn Bolted Anode | 300 | 200 | 60 | 160 | - | - | 23.6 | 24 |
Anode Code | Anode Type | Length in mm | Width in mm | Hight in mm |
TZHB 038 | Zn Bolted Anode | 200 | 100 | 30 |
TZHB 044 | Zn Bolted Anode | 200 | 100 | 40 |
TZHB 075 | Zn Bolted Anode | 300 | 150 | 25 |
TZHB 086 | Zn Bolted Anode | 300 | 150 | 30 |
TZHB 110 | Zn Bolted Anode | 300 | 150 | 40 |
TZHB 150 | Zn Bolted Anode | 300 | 150 | 50 |
TZHB 180 | Zn Bolted Anode | 300 | 150 | 60 |
TZHB 160 | Zn Bolted Anode | 300 | 200 | 40 |
TZHB 200 | Zn Bolted Anode | 300 | 200 | 50 |
TZHB 240 | Zn Bolted Anode | 300 | 200 | 60 |
Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
110 | - | - | 3.4 | 3.8 |
110 | - | - | 4.0 | 4.4 |
160 | - | - | 7.1 | 7.5 |
160 | - | - | 8.2 | 8.6 |
160 | - | - | 10.6 | 11.0 |
160 | - | - | 14.6 | 15.0 |
160 | - | - | 17.6 | 18 |
160 | - | - | 15.6 | 16 |
160 | - | - | 19.6 | 20 |
160 | - | - | 23.6 | 24 |
Zinc Half Round Welded Anodes (Water Drop Shape)
Anode Code | Anode Type | Length in mm | Width in mm | Height in mm | Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
TZH 038 | Zn Welded Anode | 160 | 100 | 55 | 25*6 | Flat Bar | 3.6 | 3.8 | |
TZH 105 | Zn Welded Anode | 280 | 150 | 65 | 50*6- | Flat Bar | 9.8 | 10.5 |
Anode Code | Anode Type | Length in mm | Width in mm | Hight in mm |
TZH 038 | Zn Welded Anode | 160 | 100 | 55 |
TZH 105 | Zn Welded Anode | 280 | 150 | 65 |
Core Length |
Size in mm |
Type | Net Wt. Kg | Gross Wt. Kg |
25*6 | Flat Bar | 3.6 | 3.8 | |
50*6 | Flat Bar | 9.8 | 10.5 |
Certifications And Standards
Get A Quote
© 2021 totalsind.com
Total Solution Industries L.L.C.
After we get some information from you, we’ll set up a time to discuss your project in further detail.
Get A Quote
Follow Us:
